Cantilever Sliding Gate

EasyGate Cantilever Sliding Gates

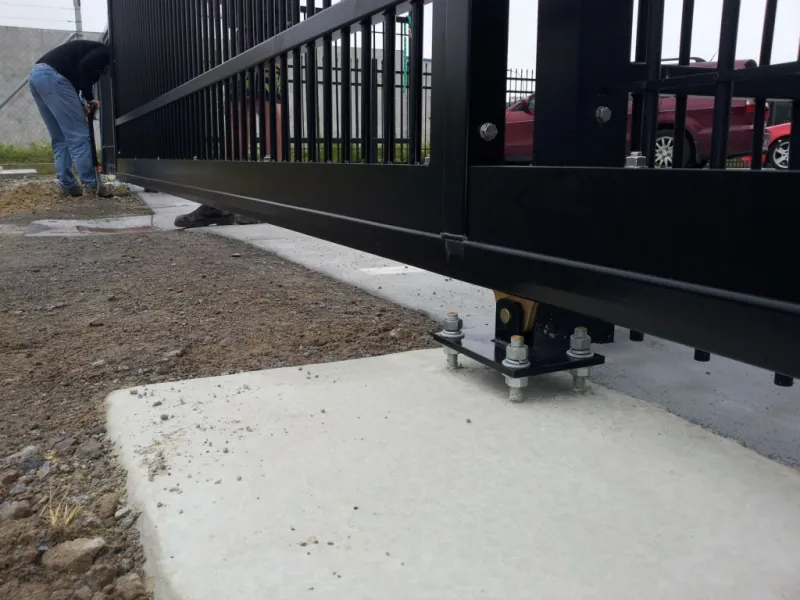

A cantilever gate is a type of sliding gate that is suspended above the ground and does not require a ground-mounted track to operate. It works on a counterbalance principle, where a "tail" section extends beyond the entrance, allowing it to slide open and close by being supported by special carriage wheels mounted on a concrete footing.

Advantages of Cantilever Gates:

• No Ground Tracks: Because they do not need a track in the driveway, they are perfect for uneven, sloped, or unsealed surfaces (like gravel).
• Low Maintenance: They are not prone to possible issues caused by dirt, leaves, mud, or snow accumulating in a track.
• Space-Saving: They slide along the fence line or out into free space rather than swinging out, making them ideal for short or narrow driveways.
• Superior Security: The suspended design makes them difficult to force open or lift.

 The EasyGate Cantilever Slider is designed to be automated easily and we fabricate these  using  a strong, lightweight aluminium  cantilever base rail to which the gates are welded to . There is no rusting and our system is Easy to install and operate which increases longterm reliability.

Available Gate Styles

The following styles are recommended  because  of their aluminium  vertical picket  open designs that maintain the necessary weight-to-strength ratio for cantilever operation:

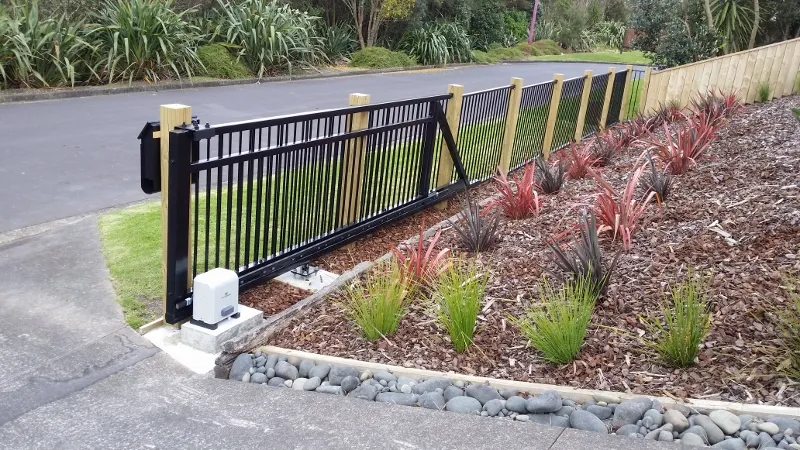

• Manor (Flat Top)

: Popular style featuring vertical round pickets with "windows" across the top.

• Classic Bar (Flat Top)

: Uses square 20 x 20mm pickets for a more robust look and extra strength.

• Elite (Spear Top)

: An ideal security option for commercial properties, featuring pressed spear tops on vertical 25 x 25 square pickets.

Optional:

 Matching Fence Panels,  Pedestrian  gates, TMT Boxer 24volt Automation packages from $899, Motor risers $195 and alloy  guide roller posts from $165.each

Restricted Configurations

Certain EasyGate styles  such as Tongue and Groove, Slat , Louvre and Frame only are generally not available for cantilever builds because their infill weight  exceeds the safe operating limits for the cantilevered overhang and their high surface area due to  solid fill design is likely to create high side loaded windage on the gate that affects its operation .

Key Specifications

• Maximum Opening: Standard cantilever gates can span openings of up to 4.2 metres.

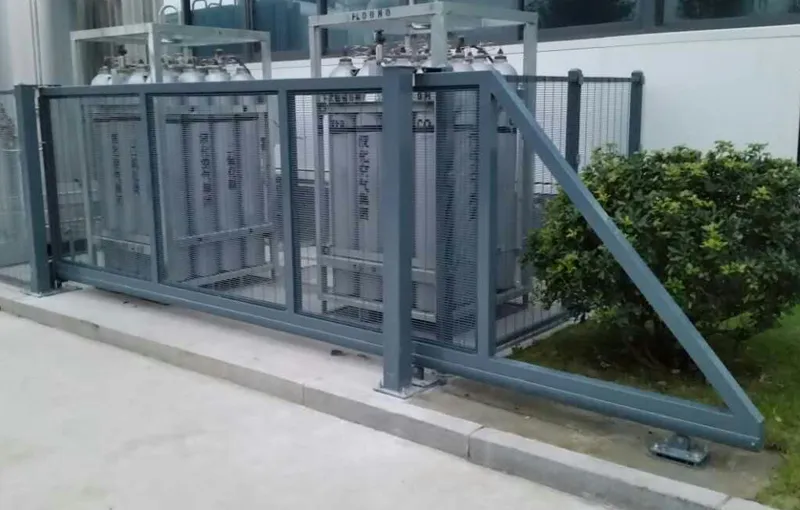

• Total Length: Including the diagonal counterbalance tail (approx. 1.8m long), the maximum total width is usually 5.8 metres.

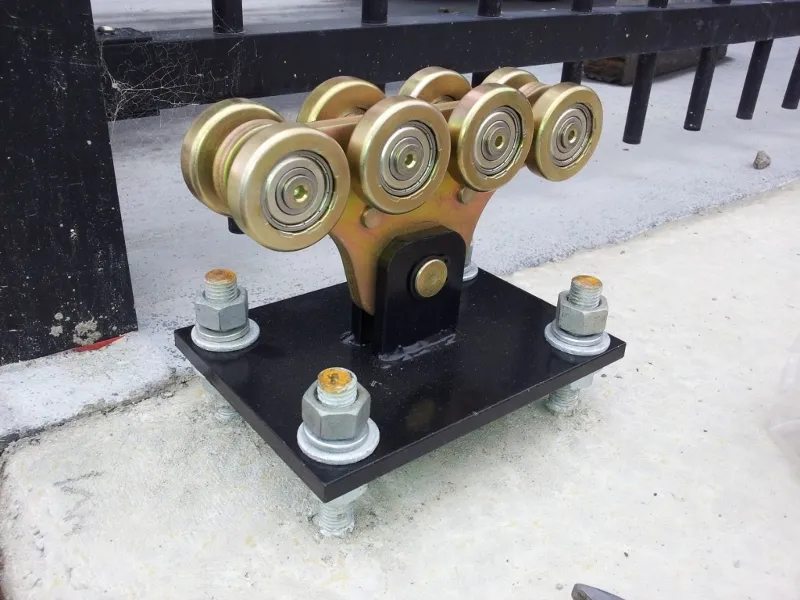

• Included Hardware: Kits typically include the Carriageway base channel rail and matching roller system, concrete mounting plates, guide brackets, end catchers and Stoppers.

Would you like to get a custom quote for a specific gate length or discuss automation options for your cantilever system?



Basic Cantilever install guide
