Clifford 500 Double Swing Gate Opener

Clifford 500 in its sleek dark colour design is the perfect choice for your large and heavy swing gates.
Has the ability to push a swing gate leaf up to 4.5m in length (set up dependent)

• Do you have a metal / loose drive way?
• Installing the gates higher than standard off the ground where gate stops cannot be used?

Clifford 500 has an inbuilt limit switch option; where you control how far in and out the arms will travel.
No more need for the centre ground gate-stop.
(note: a gate-stop can still be used with the system if you wish)

• Do you have a gate that dose not swing/move linear?
• Gate attached to a wooden post, that might move/twist during the change of season?

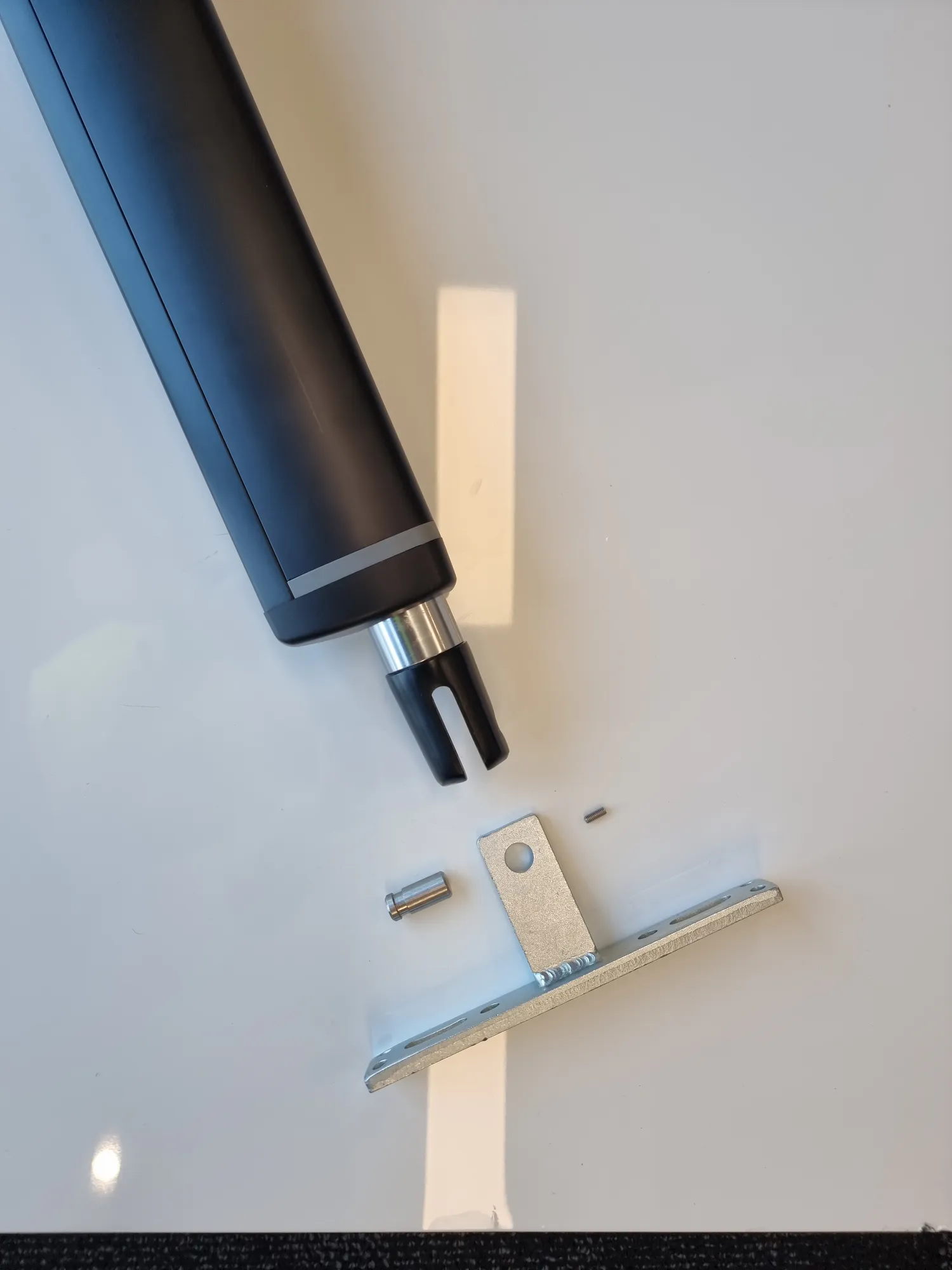

Clifford 500 has a built in hinge at the post mount end.
This allows the unit to rise and fall a small amount while it opens and closes your gate, to help overcome small imperfections in gate movment.

• Concerned about power failures?

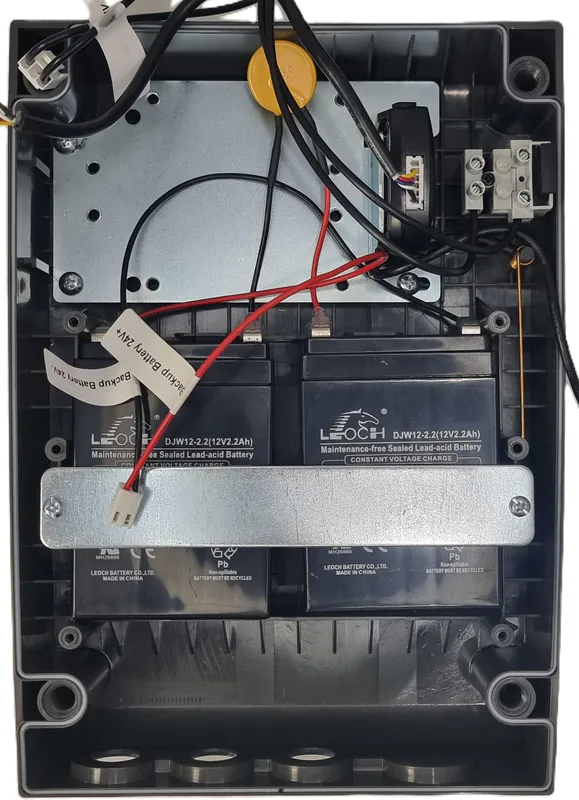

Being a low voltage gate opener, the Clifford has a battery backup (included). allowing the gate to open & close a few times if you do incur a power outage.

• Backup batteries run flat due to a long power outage?

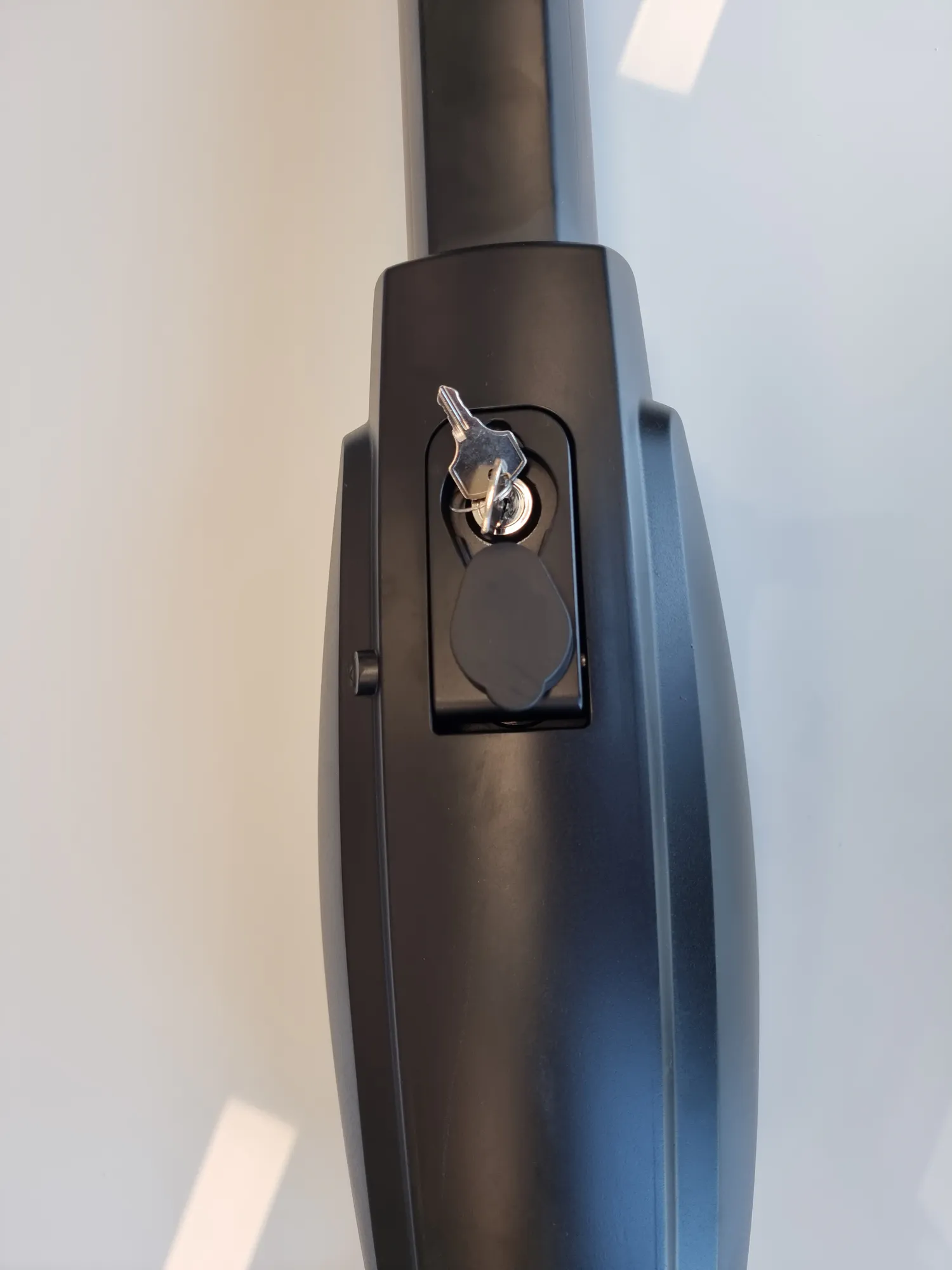

Clifford comes with keys to disengage the automation system, Thus allowing for manual opening and closing of your gate.

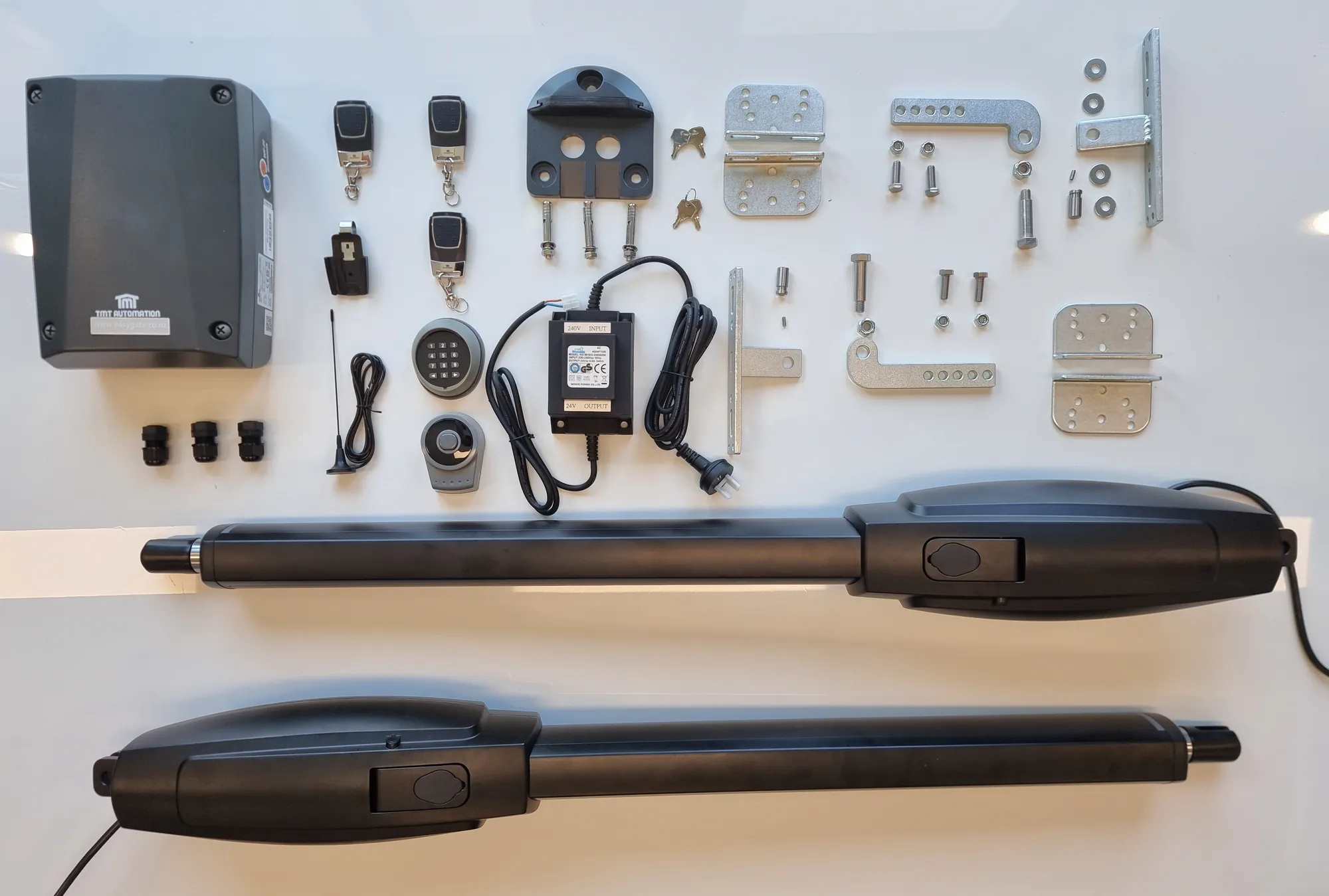

The Clifford is sold with a step-down Transformer Kit making it extremely user friendly and suitable for a wide range of swing gate automation applications.

The transformer is positioned at the nearest power point (up to 80m) from the gate.
A low voltage garden lighting cable (not included) needs to be installed from the transformer to the gate control box located at your gate automation. You can install this cable yourself along a fence, in a garden, across concrete paths and driveways etc with little effort. Suitable for most domestic applications (conditions apply, see www.easygate.co.nz for technical data).

Clifford 500 Specifications

Max. Gate Weight: 450/550 kgs

 Max. Gate Length: 4.5m / per leaf

Motor power supply DC 24V

 Gear Type:  Worm gear

Operational Stroke: 540mm

Duty Cycle: 50%

Ip rating: IP44

 Dimension (mm): 1117.5 x 136 x 126

 Power: 144W

Current: 6A

 Manual Release: Key
