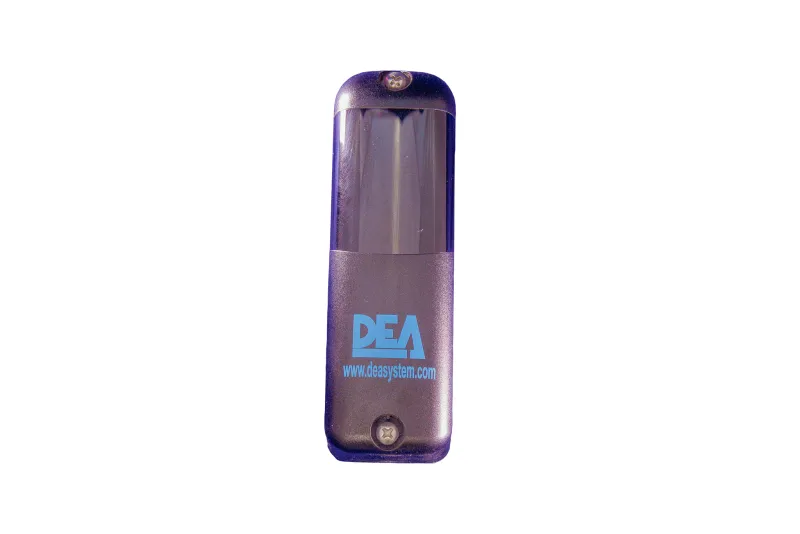

DEA Safety Beams

A Recommended Product:

These can be referred to as Safety Beams, Infra-red Beams, or Photocells.

Photocells are used primarily as a safety device to detect the presence of a vehicle or person through an entrance.

Photocells placed on each side of a gate driveway, will increase your hazard management of your gate opener system.

Safety:

Designed to detect objects that may be in the way of a closing gate by sending an infra-red beam between the 2 x safety beams. If the beam is broken by an object, child, car etc it sends a signal to the control board of your opener to STOP and return to the fully OPEN position. This will avoid costly damage and injury.

Detection:

Designed to detect objects passing through the beams across your driveway and activate the gate opener.

Note: Photocells sold as a pair (one for each side of your driveway)


Power:

For the main unit, power is taken from a 12vDC terminal on your gate control board.

Receiver end is powered by 1x ER26500 "C" sized battery running at 3.6v

Compatible with all EasyGate gate openers

6 month back to base warranty
