Economy 40 Sliding Gate

The 'Economy 40' Aluminium Sliding Gate is a cost effective lightweight gate where automation is not (and will not be in future) required.


From $709.00 Incl GST

EasyGate's 'Economy 40' Aluminium Sliding Gate is designed for installations that do not require automation. The Economy 40 has a full 40 x 40mm alloy constructed frame, standard pickets and basic rectangular shape making a cost effective lightweight option for manual only use.

Gate kit includes: 2 x trapeze 80mm steel wheels, Alloy wheel track with concrete anchor pins, top roller guide bracket, front end catcher and rear gate stopper.

The Economy 40 sliding gate can be built in the following specs:

Height: 1m - 1.1m - 1.2m - 1.3m - 1.4m and 1.5m.

Frame length: 3.0m - 3.5m - 4.0m and 4.5m.

Round pickets running  full frame height top to bottom.

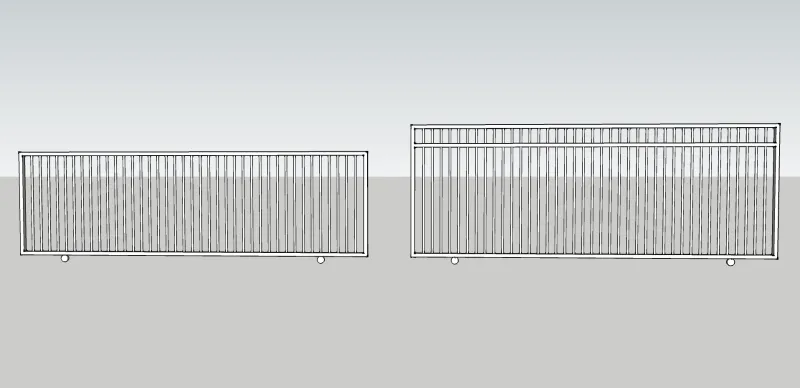

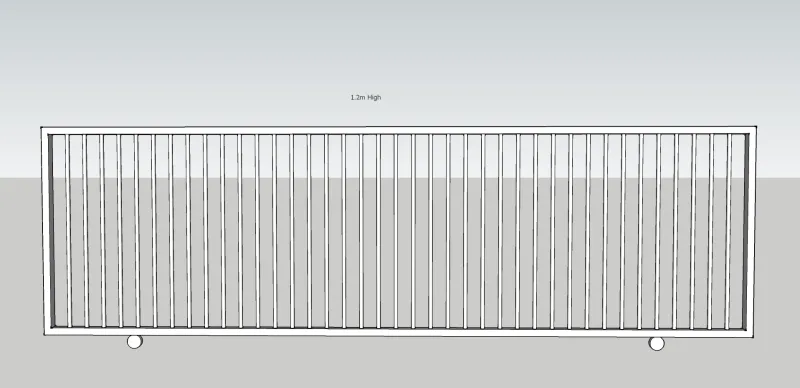

Heights from 1 - 1.4m have the top and bottom horizontals only, no 2nd rail down from the top.

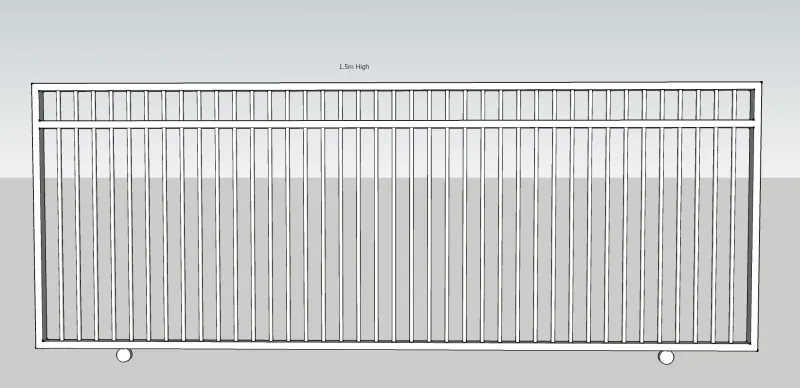

With the 1.5m high version having an extra 40 x 40 horizontal beam down from the top rail (pictured).

To change angle of bottom rail to match slope of driveway add 15% onto price (conditions apply).

Baked powder coating in Satin Black or upgrade to another standard powder coating colour for an extra $59.

EasyGate Economy 40 Sliding gate (not designed for automation)

Aluminium Construction 40 x 40 mm outer frame with Round Pickets with 80 mm gap

1.0m high

No second rail down from top

1.1m high

No second rail down from top

1.2m high

No second rail down from top

1.3m high

No second rail down from top

1.4m high

No second rail down from top

1.5m high

Includes second rail down from top, plus the bottom

Frame length 3.0m $709 $759 $799 $849 $899 $959
Frame length 3.5m $789 $839 $879 $929 $979 $1039
Frame length 4.0m $869 $919 $959 $1009 $1059 $1119
Frame length 4.5m $949 $999 $1039 $1089 $1139 $1199

Prices being inclusive of gst, ex Tauranga factory. Delivery nationwide available, contact for delivery cost.


The standard colour option for this gate style is Satin Black. For other colour options please read through our powder colour page here.
