Estate Double Swing Gate

Premium Design

The "Estate Style" swing gates from EasyGate are made from strong, rigid aluminium and powder coated in a colour of your choice. No more saging issues as with timber equivalents.

Price

See Below For Indicative Prices. Email for Quote.


The "Estate Style" swing gates from EasyGate are made from strong, rigid aluminium and powder coated in a colour of your choice.
No more sagging issues as with timber equivalents.
EasyGate can manufacture almost any width and height you want and can arrange delivery to your home anywhere in New Zealand.
Adjustable hinges add to ease of installation.

For the 'Estate' design: due to the arch at the top, exact heights at the hinge ends and centre can vary depending on your gap between your posts - to be discussed during the order process.

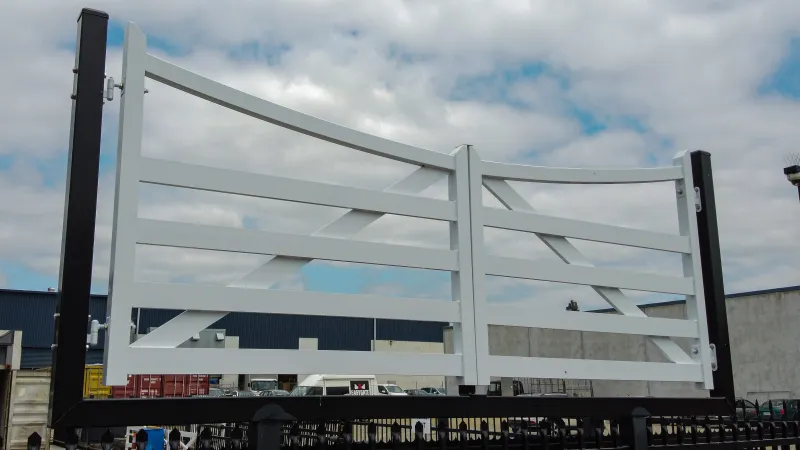

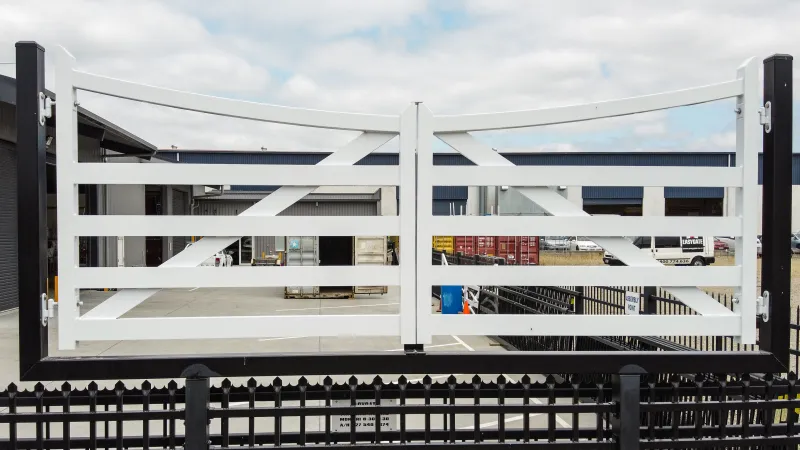

As a guideline, the white gate in the photo is for a commonly requested gap between posts of 3.6m

For a 3.6m post gap Estate gate:
Outside height of the frame post is: 1450 mm
Center height of the frame post is: 1200 mm
Top arch 80 x 50 mm
Bottom rail 100 x 50 mm
Sides 75 x 75 mm
3 x Horizontal planks plus the diagonal planks 100 x 25 mm

Includes 4 x adjustable heavy duty hinges
Powder coated and heat treated paint.

Indicative pricing based on the same design (number of horizontal planks and arch top) and approximate heights as the 3.6m post gap example above:


Estate Double Swing Gates - Incl GST, Ex Factory
Post Gap (Min-Max)

Indicative price gate with hinges

3.1 - 3.4 $2595
3.4 - 3.7 $2695
3.7 - 4.0 $2895
4.0 - 4.3 $2995
4.3 - 4.6 $3195
4.6 - 4.9 $3295
4.9 - 5.2 $3395

Optional: EasyGate have the automation kits and posts to match the gates in stock. Thicker aluminium posts are also possible as an optional extra (eg 140 x 140mm, or 150 x 150mm - depending on material availability).



The standard colour option for this gate style is Matte Black. For other colour options please read through our powder colour page here.
