HW-09A Universal Wireless Safety Beam Sensor
Click to enlarge
Limited Stock
A pair of Semi Wireless photocell / safety / infra-red beams to go across a driveway.
HW-09A Universal wireless safety Beam Sensor

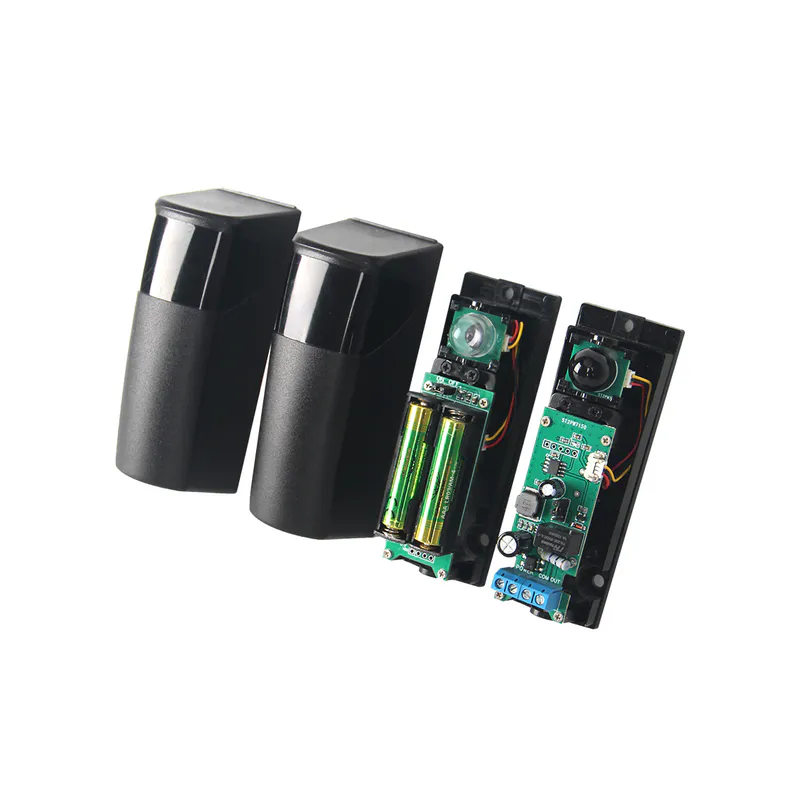

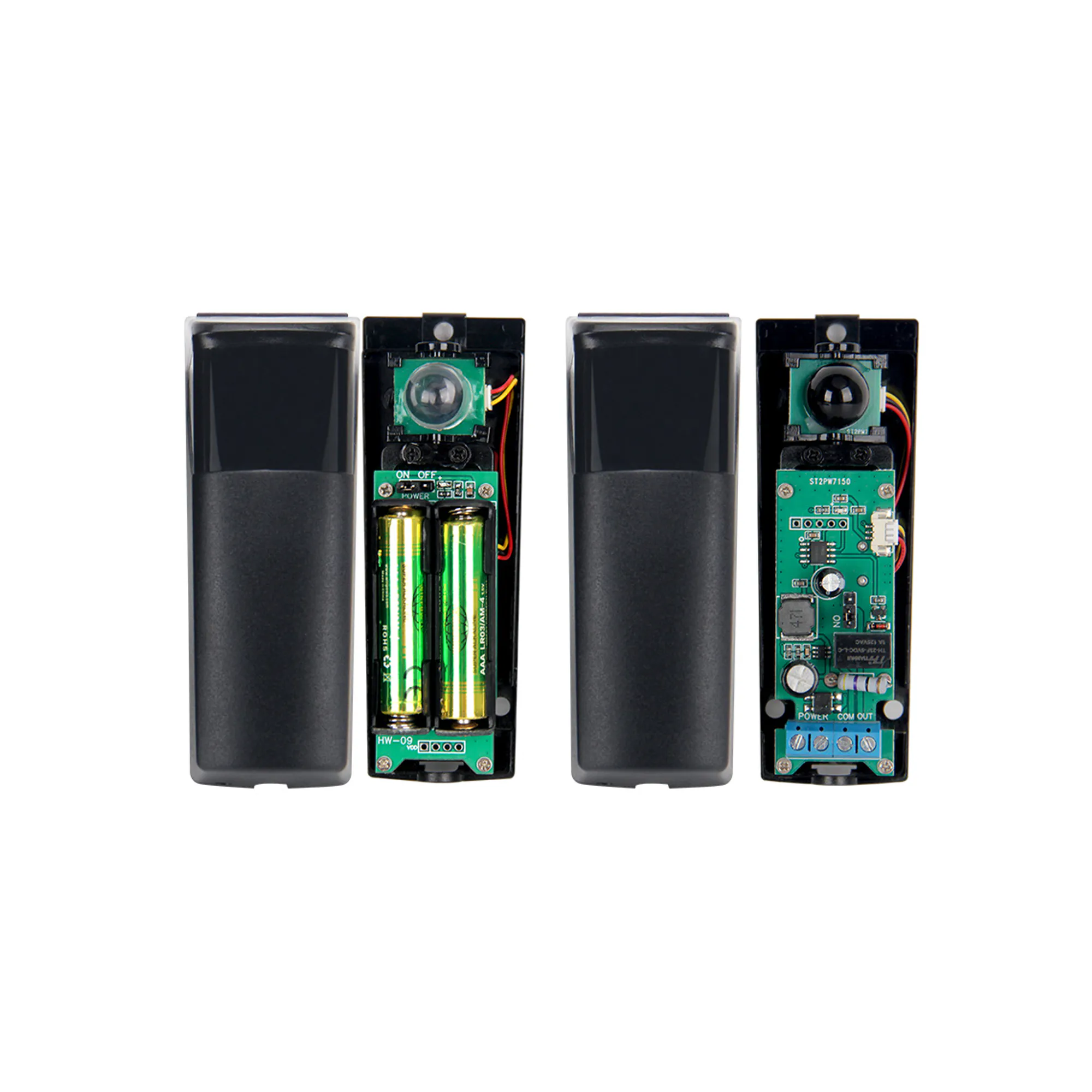

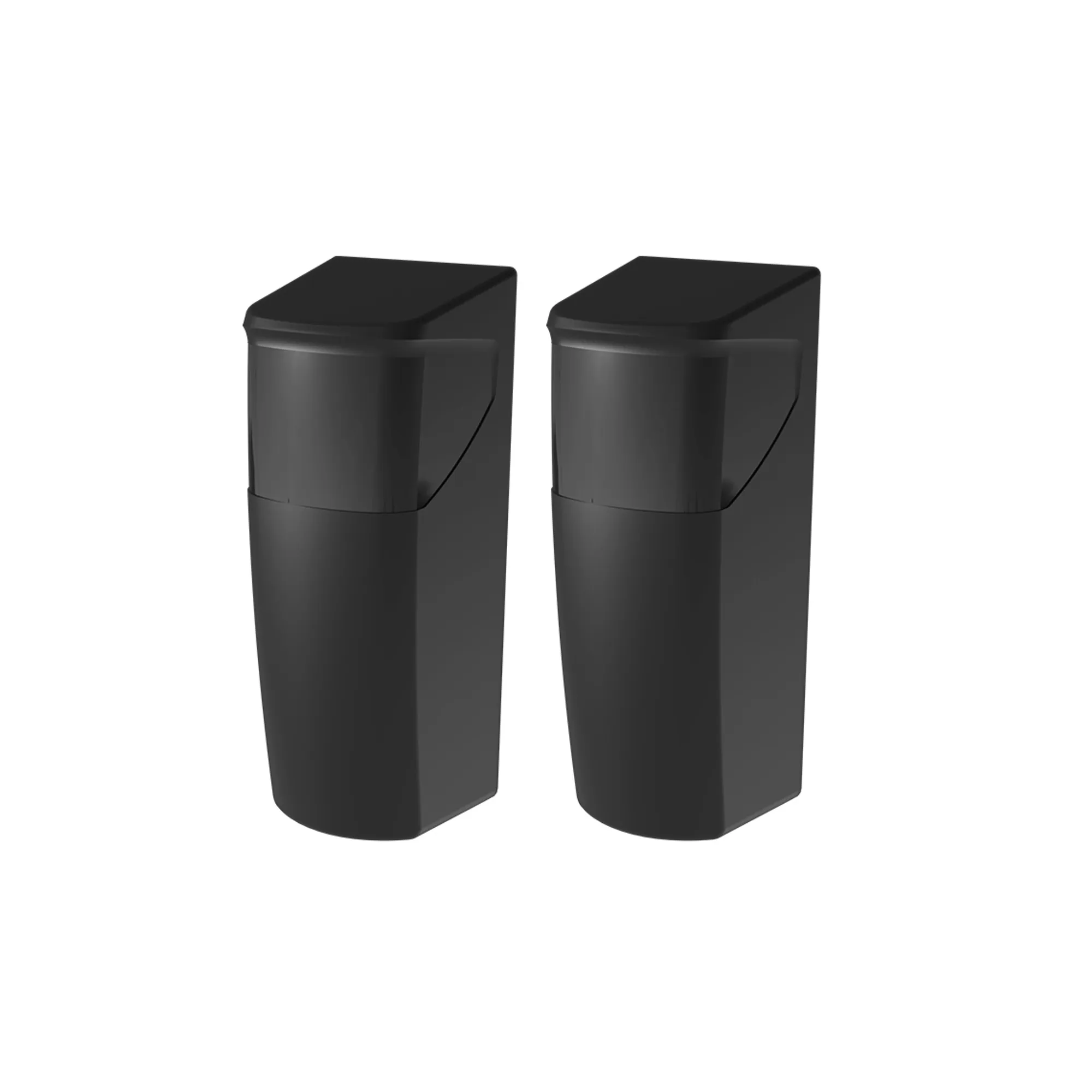

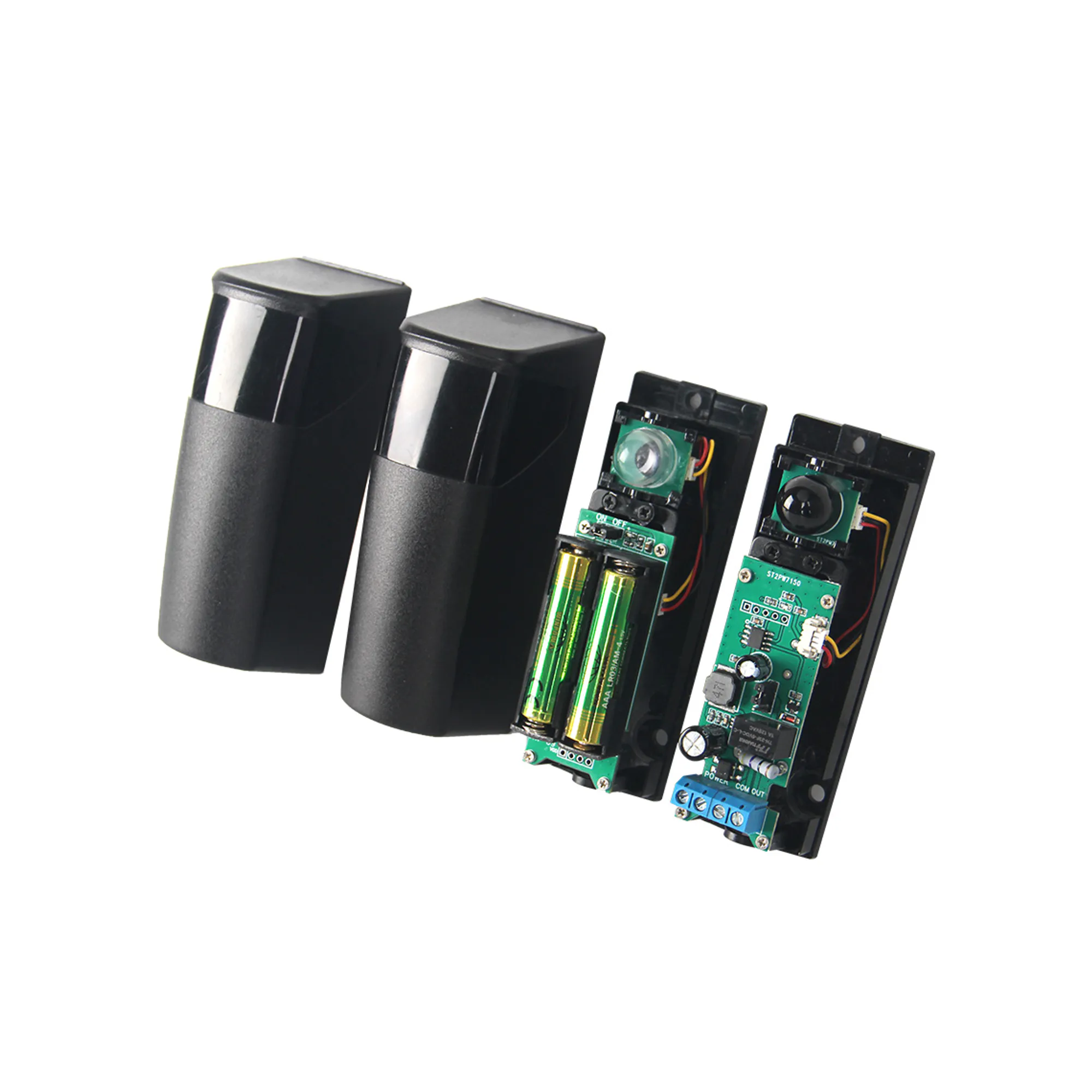

The HW-09A is a universal wireless infrared photocell (safety beam sensor) designed for automatic gates and garage doors. It prevents doors and gates from closing on vehicles or pedestrians by projecting an invisible infrared beam between two units; if the beam is broken, the gate immediately stops or reverses.
Key Features
- Operating Range: Up to 9 meters indoors or outdoors.
- Adjustable Angle: Features a 220° rotating head for easy alignment.
- Weather Resistance: Rated IP45 for protection against splashing water and dust.

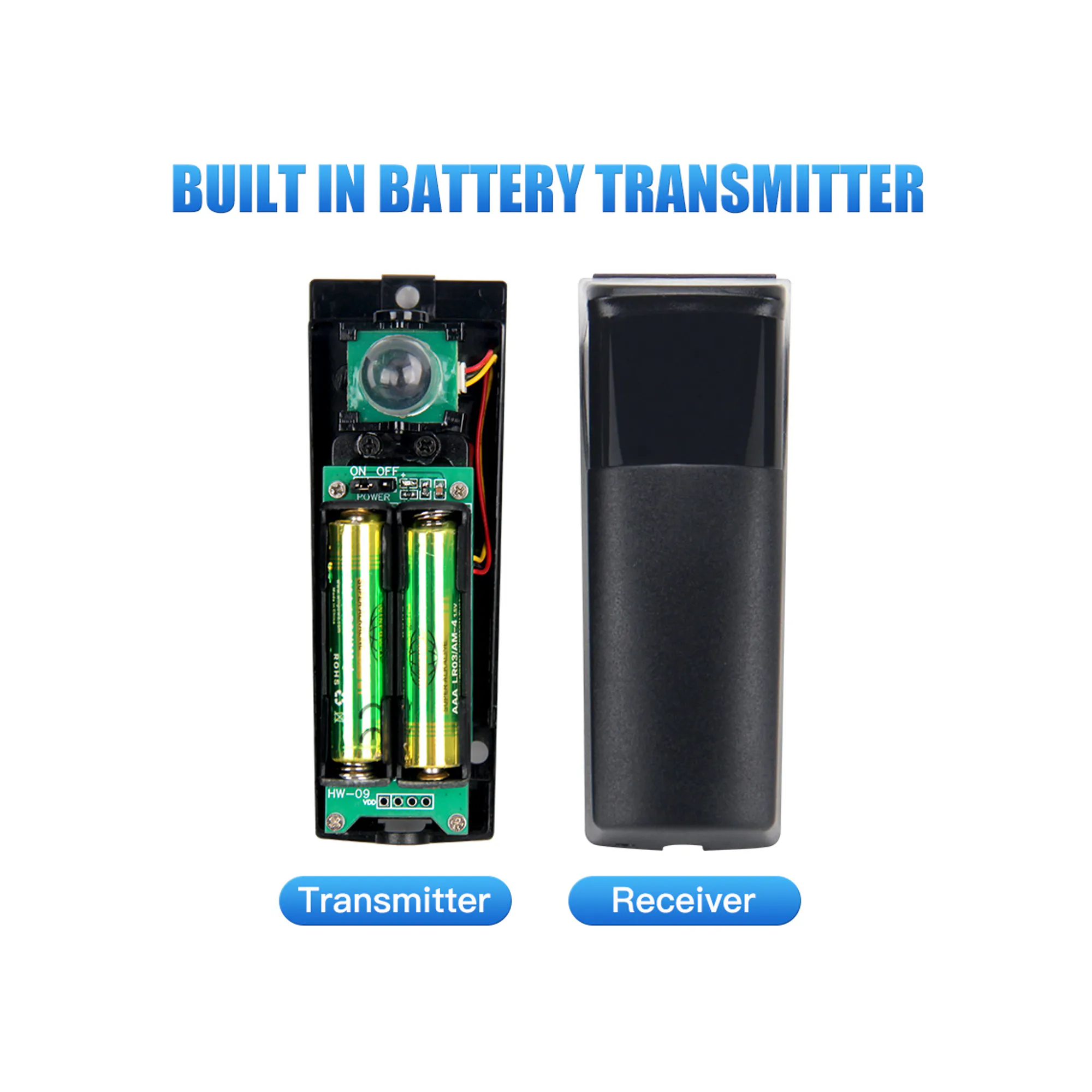

- Power & Installation: The receiver is typically wired to the control board, while the transmitter is battery-operated (usually requiring two AA batteries), allowing for easy wireless installation without trenching wires across a driveway.
- Operating Temperature: Built to withstand harsh conditions, functioning reliably from -20°C to +70°C.
Compatibility
The HW-09A is compatible with almost all models of automatic swing gates, sliding gates, and motorized garage door openers
