EasyGate

Louvre Sliding Gate

Louvre Sliding Gate - installed

Hover for zoomClick to enlarge

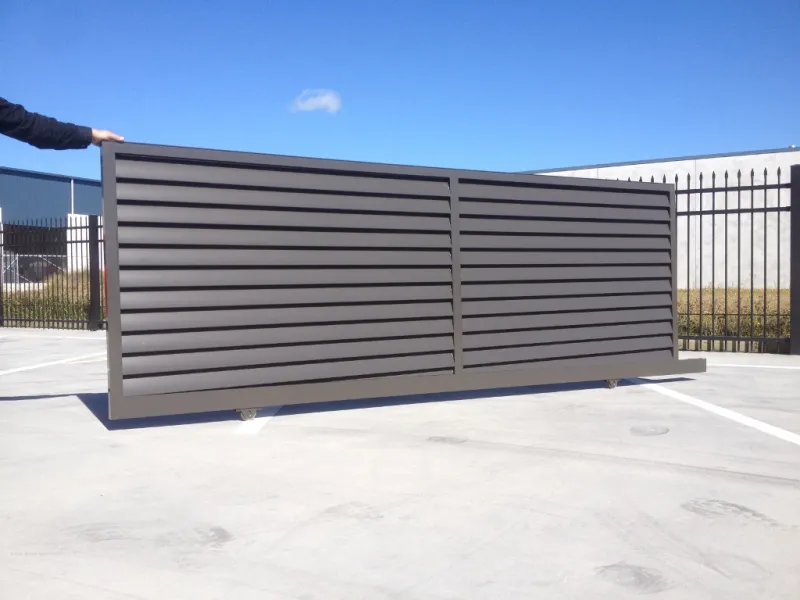

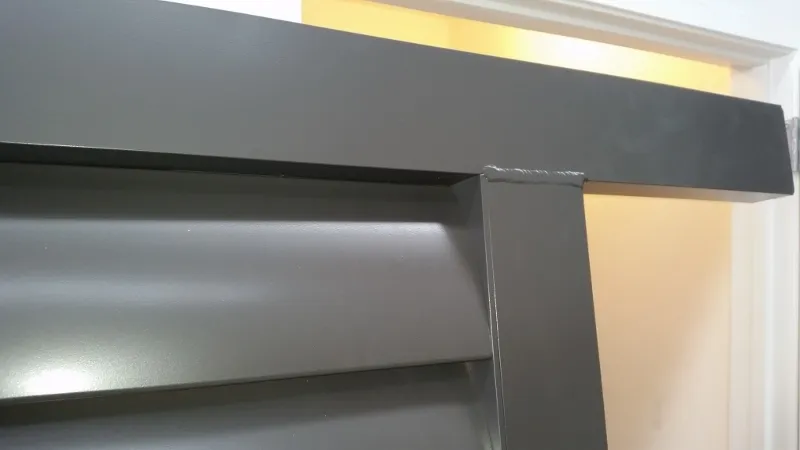

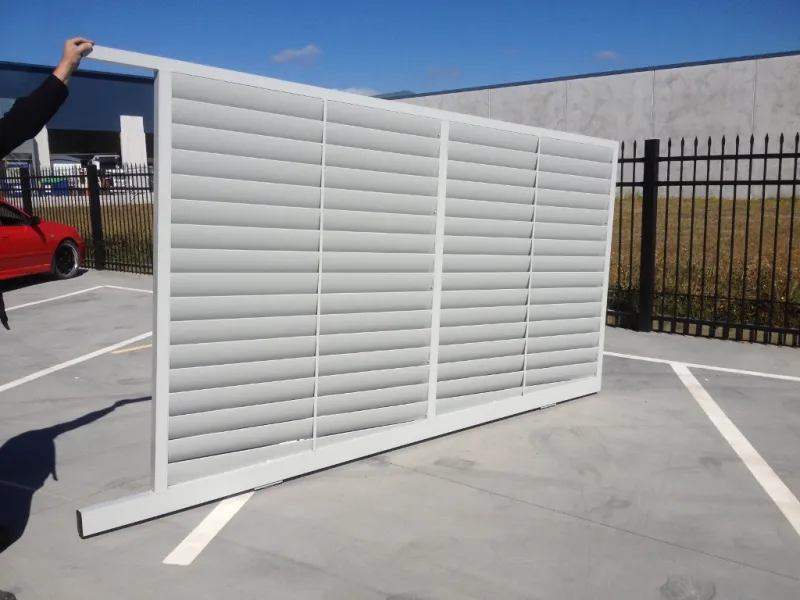

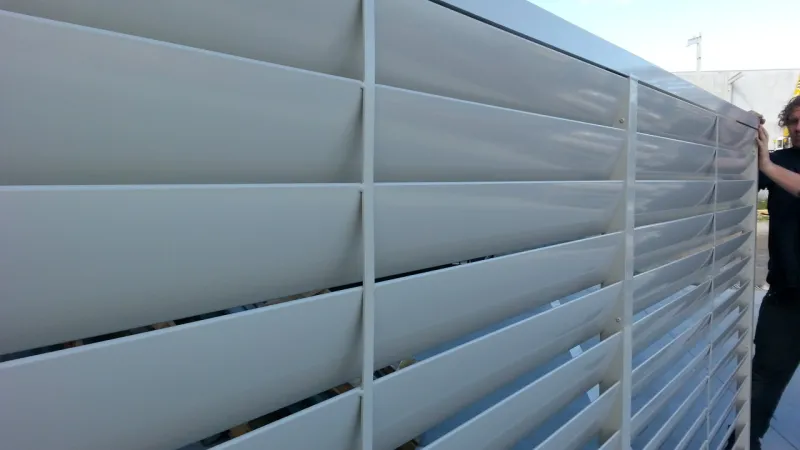

Louvre Sliding Gate - installedClose-up of louvres and the top 'tail'Rear or house side of a louvre gate showing the vertical support strips that are used on some longer louvre gatesFresh out of the EasyGate factory - ready to go to a happy customer. Made with a sloping bottom.A louvre slider with a sloping bottom to match the slope of the driveway it will be installed on
Premium Design

Beautiful Louvre gates - made from EasyGate's own extra strong louvre profile.

Price

Contact with your dimensions for a price

Add to wishlist

Description

Aluminium construction.

Frame Length: 1m to 8m (not including the 300mm tails at one end)

Frame height: 1m to 2m (based on an installed gate with wheels and wheel track)

Tail length: 300mm top and bottom at one end

Sides and top rail: 50 x 50mm (most common) or 50 x 80mm if required

Bottom rail: 100 x 50mm

Louvre blades: 150mm wide x 25mm thick - these are EasyGate's own custom louvre profile that allow us to use longer lengths without too much flex.

Layout: Horizontal



Depending on the length of the gate, we add backing strips of vertical flat bar to the rear / house side of the louvres, or sometimes break longer gates into two panels with a vertical 50 x 50mm beam.

For a detailed quote please email sales@easygate.co.nz with your name address and a contact phone number. A measurement taken between the internal faces of  posts ( post gap) and a required finished height would also be great.
