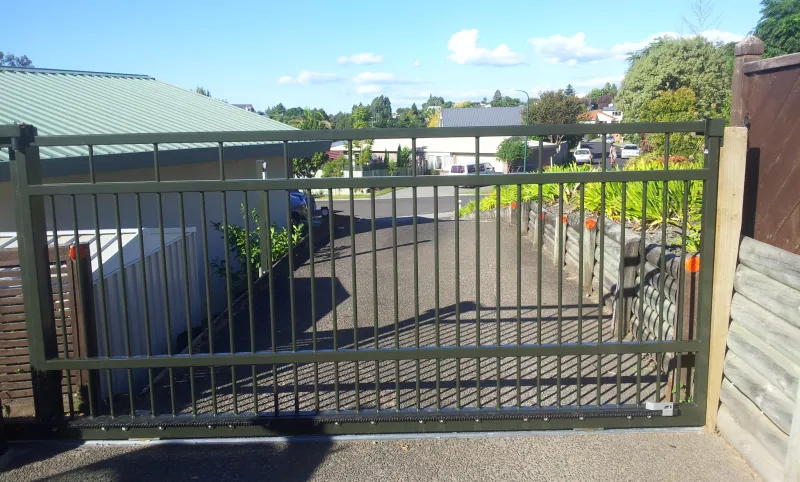

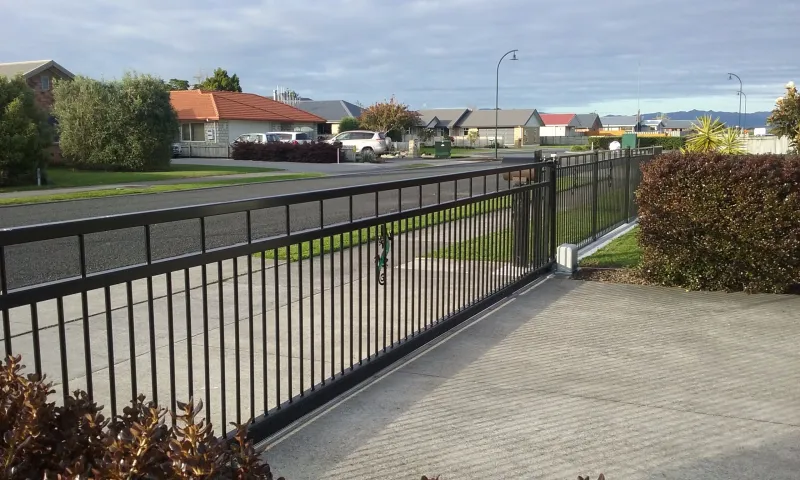

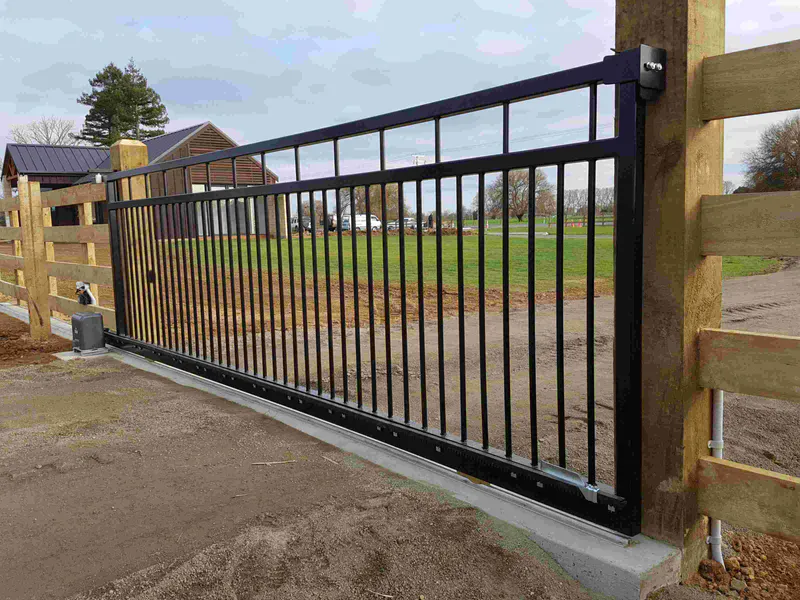

Manor Style (Flat Top) Sliding Gate

Manor style gates have vertical pickets and 'window's across the top. A strong 100 x 50mm beam at the bottom and 50 x 50mm top rails give a sturdy frame for this popular driveway gate. With standard hardware

Ground to Top (Installed) Height

Frame Length


From $1,179.00incl GST

Click here to view the PDF of Manor Slider Pricing

EasyGate sliding gates come with hardware INCLUDED.

Gate price includes frame, wheels inserted, sufficient wheel track for double the length of the gate (and concrete anchor pins and drill bit), a top guide bracket with 2 rollers, an end catcher, and a gate stopper.


Aluminium Vehicle Entrance Gates
Manor gates available in any height up to approx 2m
Sloping gates made to measure for about 15% extra
EasyGate can build your gate from 1m - 8m long, so ask for a quote
Aluminium construction will not rust
Lighter than steel yet robust with a large 100 x 50mm bottom rail ideal for adding automatic openers
Outer frame and horizontal beams are 50 x 50mm for great strength
Hidden wheels for a low profile finish
Heat treated powder coating.

Gap between pickets is 80mm, and top wind gaps are between 170 - 230mm high.

EasyGate Sliding Gates are classed as Medium to heavy duty and able to withstand the tough New Zealand working conditions of both domestic and commercial installations.

Got a sloping driveway?

EasyGate can also build a Manor design sliding gate for you with a sloping bottom to match. This will have the top of the gate horizontal, with the bottom beam on an angle to match your slope.

Ideally done together with automating your gate. If you intend to just use manually you will need to consider it's 'self - closing' nature due to gravity.

To get a price for this option, contact EasyGate with:

- Frame length

- Height from ground to top of gate for each end.


The standard colour option for this gate style is Satin Black. For other colour options please read through our powder colour page here.
