Sliding Gate Wheel | Large 'U' Profile Trapeez
Click to enlarge

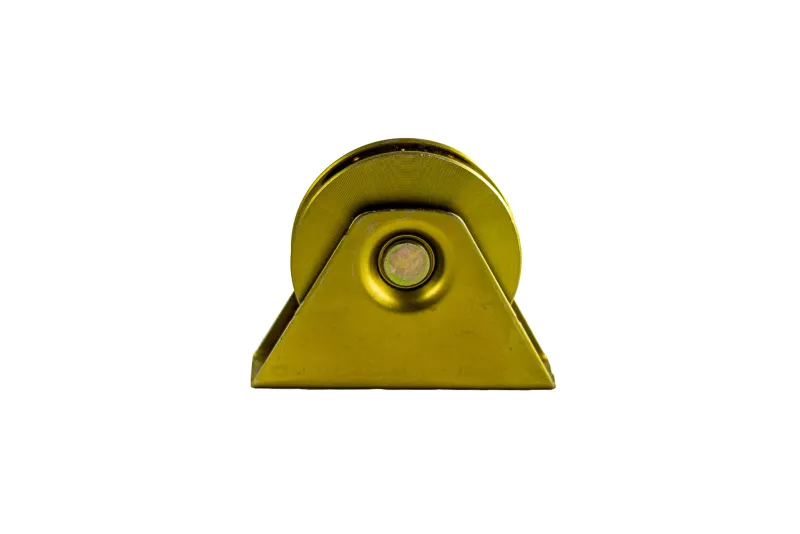

Trapeez 100mm diameter 'U' profile sliding gate wheel - with trapeez support bracket for external fixing.
Sliding gate wheel Trapeze.
- U shape groove to fit on standard U (not v) shape wheel track.
- 100mm Diameter wheel x 22mm wide with sealed bearing.
- Support is 36mm wide x 132mm long.
- Distance from center of wheel to top of Trapeze 56mm
- Height from top of wheel track to top of trapeze (gate) 110mm
- Hole center for mounting to gate 105mm x 9mm
- Made of steel and gold zinc coated for protection.
Sold individually.
