Hinges - Clamp Style Hinge - Adjustable - 50mm

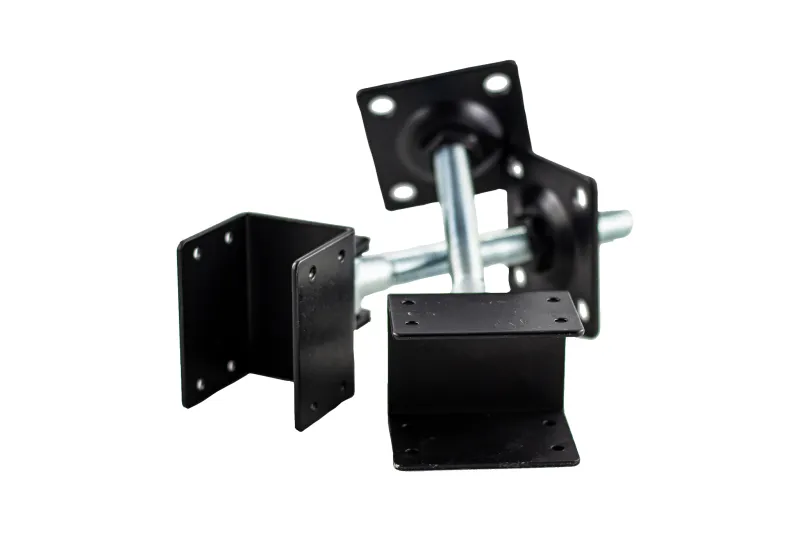

Clamp Style Hinge Adjustable 50mm

Hover for zoomClick to enlarge

Clamp Style Hinge Adjustable 50mmClamp Style Hinge Adjustable 50mm

Adjustable Clamping hinge fits 50mm RHS gate.

Price

$30.00 incl GST

Availability

Out of stock

Add to wishlist

Description

Adjustable clamping hinge fits 50mm RHS gate.

Clamp fits over your gate while the faceplate can be fastened to your post.

Fastening to gate can be with 8 x rivets OR 8 x tek screws.



  • Square faceplate.
  • Adjustable threaded rod 16mm dia x 130mm long.
  • Post faceplate: 100 x 100mm. (faceplate can vary depending on stock available at the time, please check if critical)
  • Face plate holes: 11 mm dia.
  • Clamp: 51mm inside width.
  • Rivet hole size: 5 mm dia.
  • Min distance from gate face of clamp to post plate face: 73mm.
  • Min distance from gate face of clamp to post plate face: 130mm.
  • Threaded rod can be cut shorter when installing if required.

Powder coated black.

Suitable for gates up to 150 kgs
