Remote TMT - TM4

This is the TM4 version of remote for TMT automation products.

Look carefully at the picture to ensure it is the one you want (there is a different looking TM3 version also stocked).

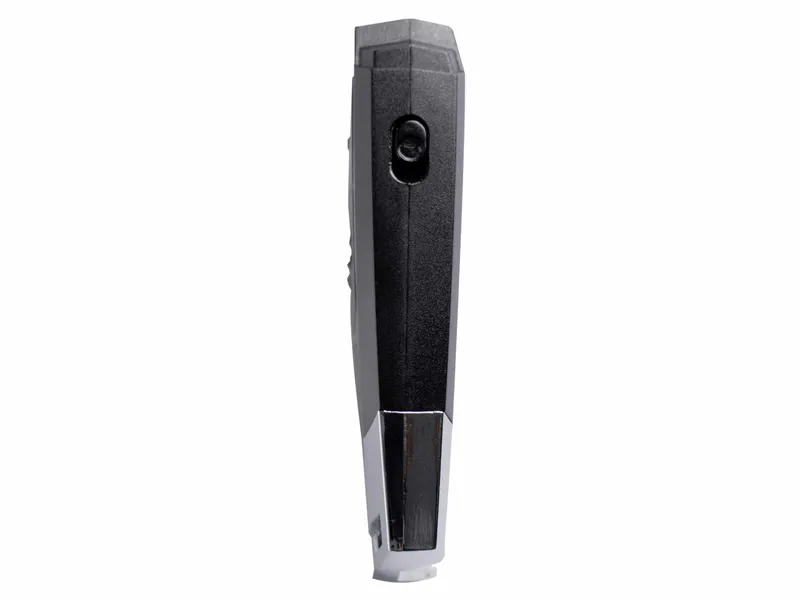

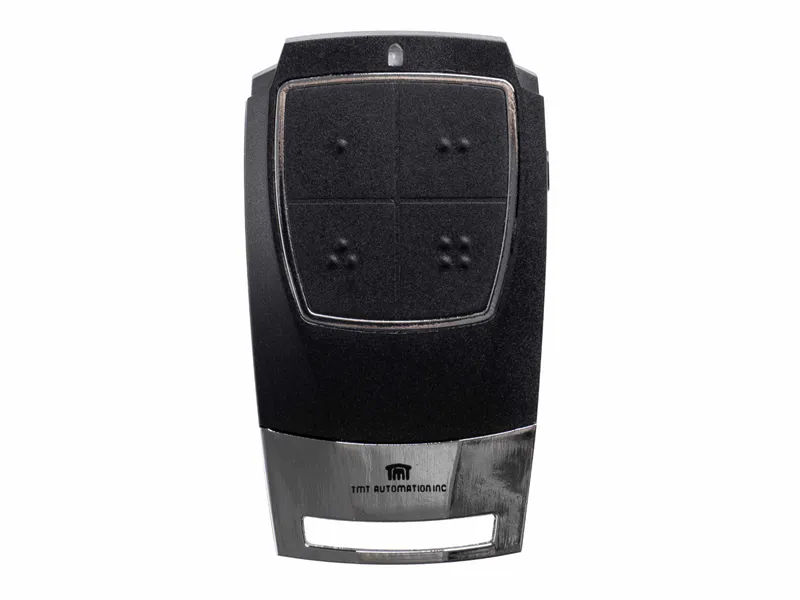

The TM4 remote has 4 black buttons with raised dots on them to represent button numbers 1 - 4. There is also a lock button on its side. If you also want a sun-visor clip for it, you will need to choose the TM4 version of sun-visor clip.

This remote is for the following models:

Boxer 500

Boxer 800

Terrier swing

Mastiff swing

Papillon swing



Will not work on any other motors

6 month warranty on remotes

0 warranty on batteries



How to Sync TMT Remote/exit button to Boxer 500/800 series



1. Hold RF button on control board for 3-4 seconds (please note, if you hold this button down for more than 7 seconds it can erase all existing remotes)
2. You should see an indicator light, (Generally blue on our systems – PLEASE NOTE newer systems will display “C5” on the screen)
3. Press TOP LEFT* button on remote, you should see the indicator light flash *for exit button, press big button.
4. Wait for RF learn light to turn off
5. Synced



How to Sync TMT Remote/exit button to Terrier/Mastiff series



1. Hold RF button on control board for 3-4 seconds (please note, if you hold this button down for more than 7 seconds it can erase all existing remotes)
2. You should see an indicator light, (LED5 will show a RED LED on our systems – PLEASE NOTE older systems will have a BLUE LED)
3. Press TOP LEFT* button on remote, you should see the indicator light flash *for exit button, press big button.
4. Wait for RF learn light to turn off
5. Synced



How to use your remote to change Auto Close function:



To turn off Auto Close: Hold down both B & D buttons on the remote for approx. 5 seconds.

To turn on Auto Close: Hold down both B & C buttons on the remote for approx. 5 seconds.

To confirm function change, open gate and wait for the programmed delay time to elapse.

Note:  Auto close function can ONLY be adjusted when gate is in the fully open or closed position. You cannot adjust it when the motor is running.

The top left button is “A” and “B” is the top right. Bottom left button is “C” and “D” is the bottom right.
