e-Loop Mini, wireless vehicle detection sensor for gate automation.

e-Loop Mini

Introducing a easy to install wireless vehicle detection for residential properties

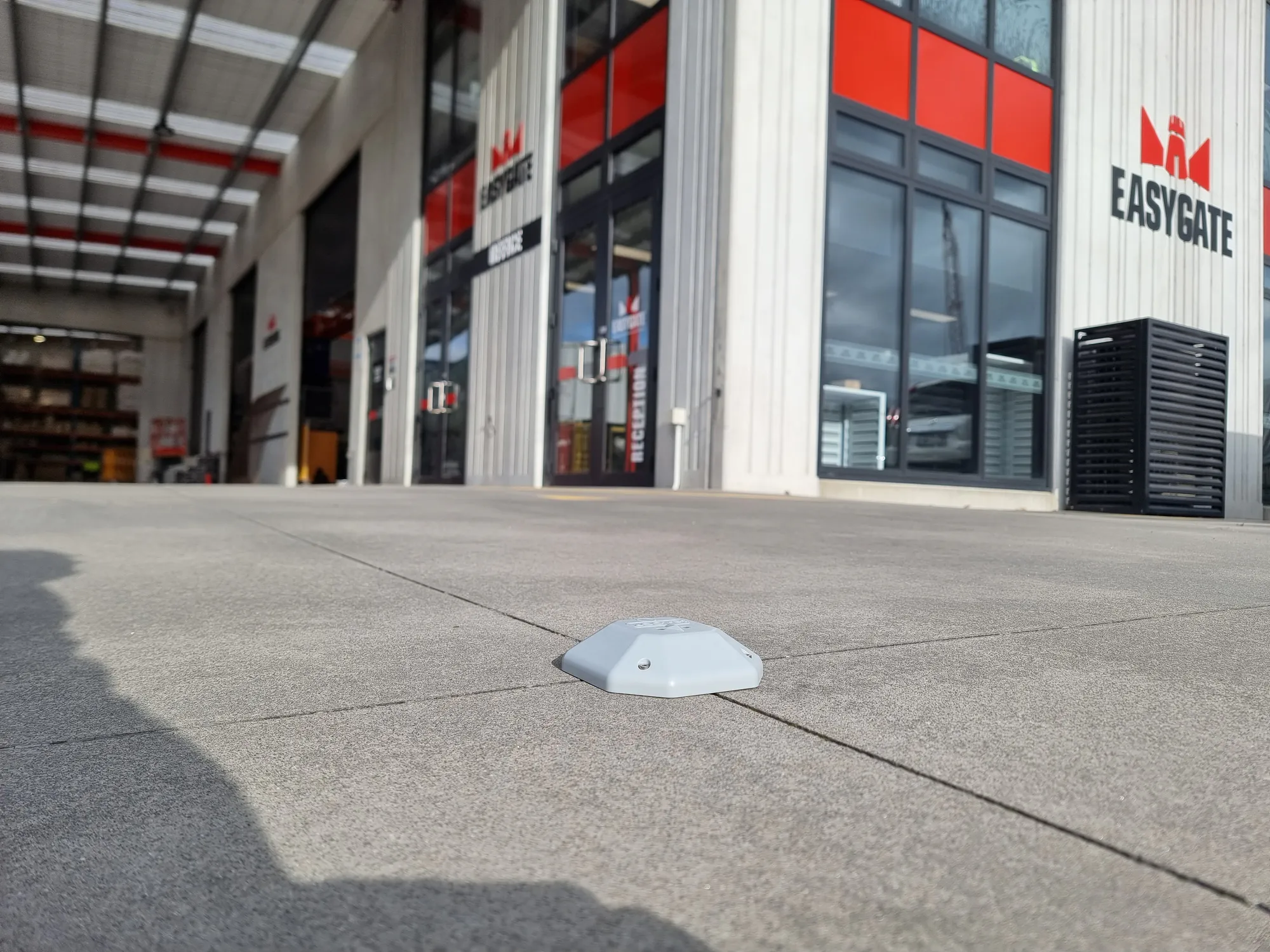

The e-Loop Mini replaces traditional wired inductive loops, entry and exit ground wands saving you time and money while increasing reliability.

The e-Loop Mini is suitable for domestic applications.

Cutting edge technology, Providing homeowners like you, A hassle-free solution for opening your automated gates.

Features:

• Quick and easy installation
• Small compact design (120mm (L) x 120mm (W) x 30mm (H)
• 2500kg Static load capacity
• Uses standard 1.5V AA Lithium batteries providing up to 3 years battery life
• High security 128-bit encryption

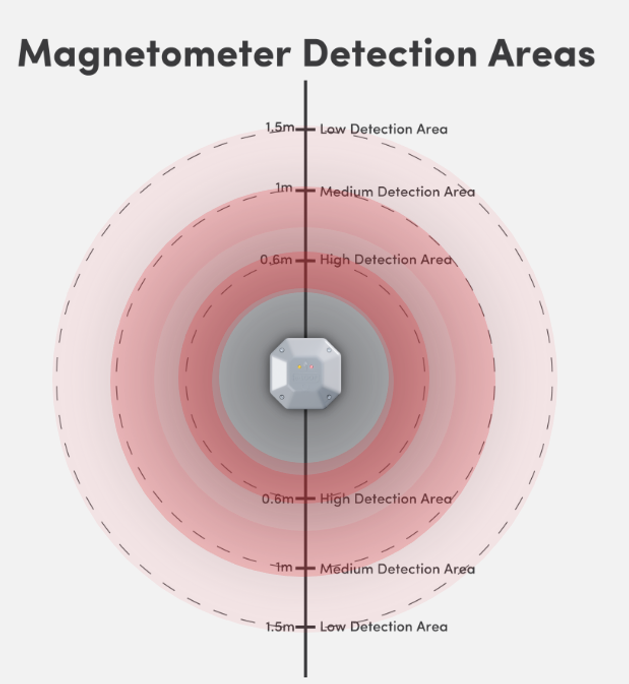

• Range up to 30m (ability to increase to long range of up to 50m)

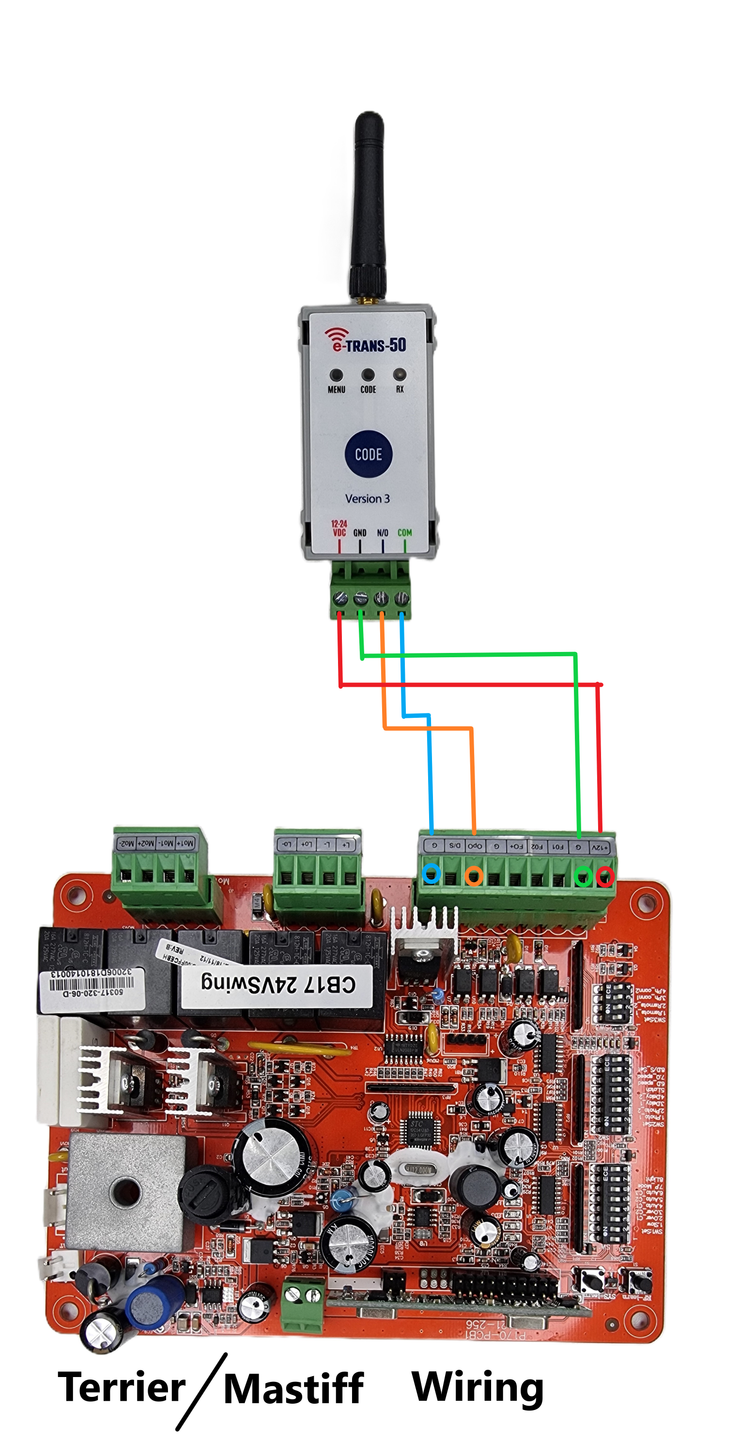

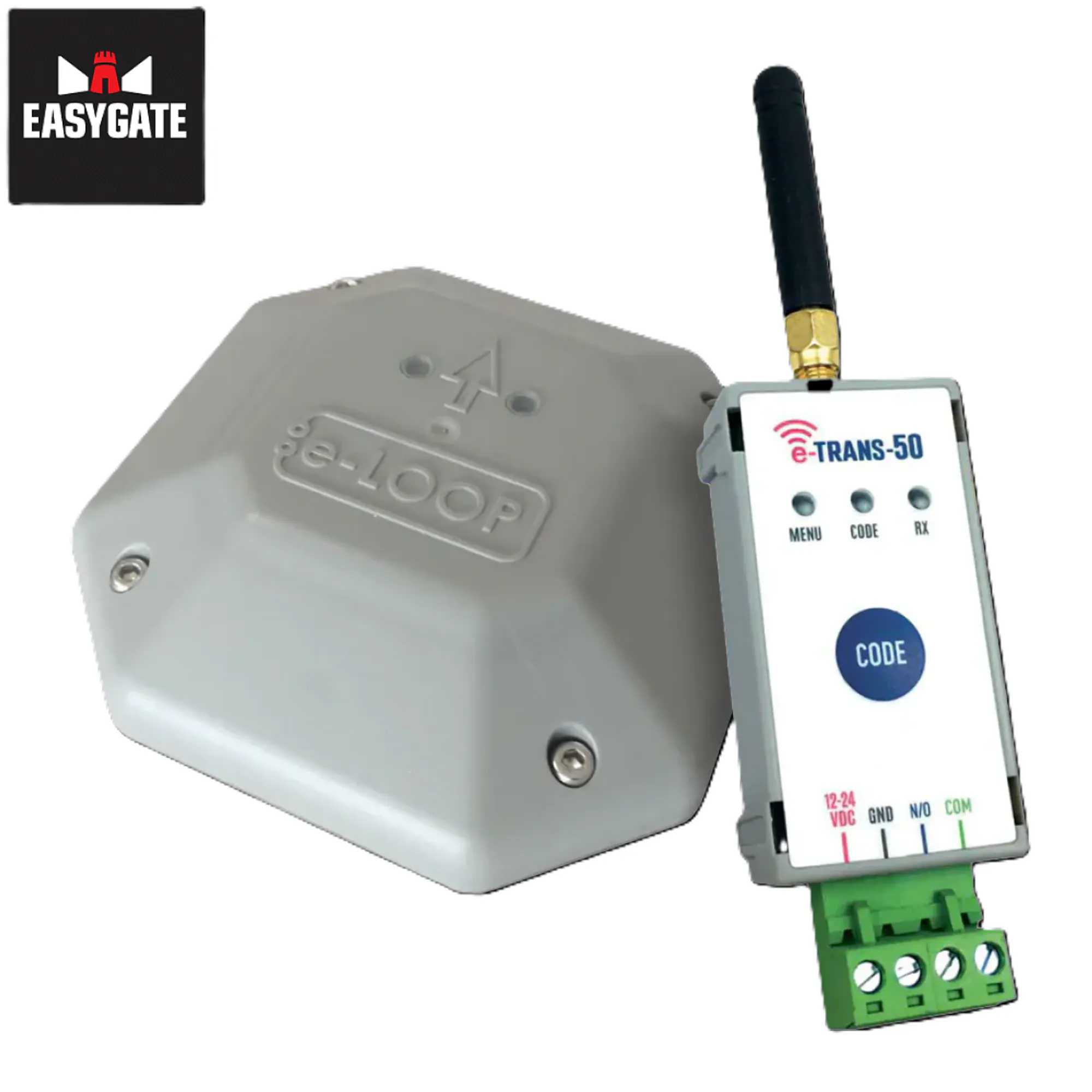

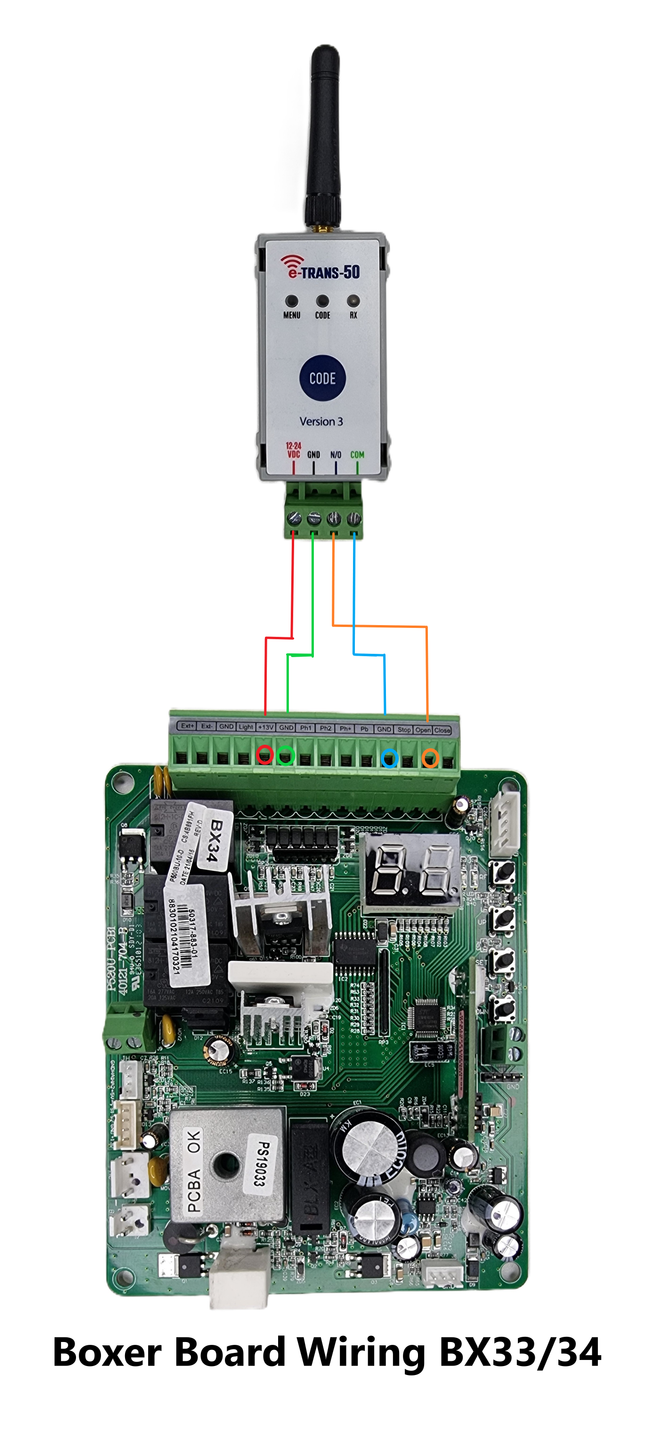

• Includes the e-Trans-50 is a single channel transceiver. It has a 12v single NO output relay connecting to “Open” port on your gate control board.





e-LOOP Mini Fitting Instructions Installation in 3 simple steps

Step 1 – Coding e-LOOP Mini version 3.0

 Option 1. Short-range coding with magnet
Power up the e-Trans 50, then press and release the CODE button.
The blue LED on the e-Trans 50 will light up, now place the magnet on the CODE recess on the e-Loop, the yellow LED will flash, and the blue LED on the e-Trans 50 will flash 3 times. The systems are now paired, and you can remove the magnet.

Option 2. Long range coding with magnet (up to 50 metres) Power up the e-Trans 50, then place the magnet on the code recess of the e-Loop, the yellow code LED will flash once now remove magnet and the LED come on solid, now walk over to the e-Trans 50 and press and release the CODE button, the yellow LED will flash and the blue LED on the e-Trans 50 will flash 3 times, after 15 seconds the e-loop code LED will turn off.

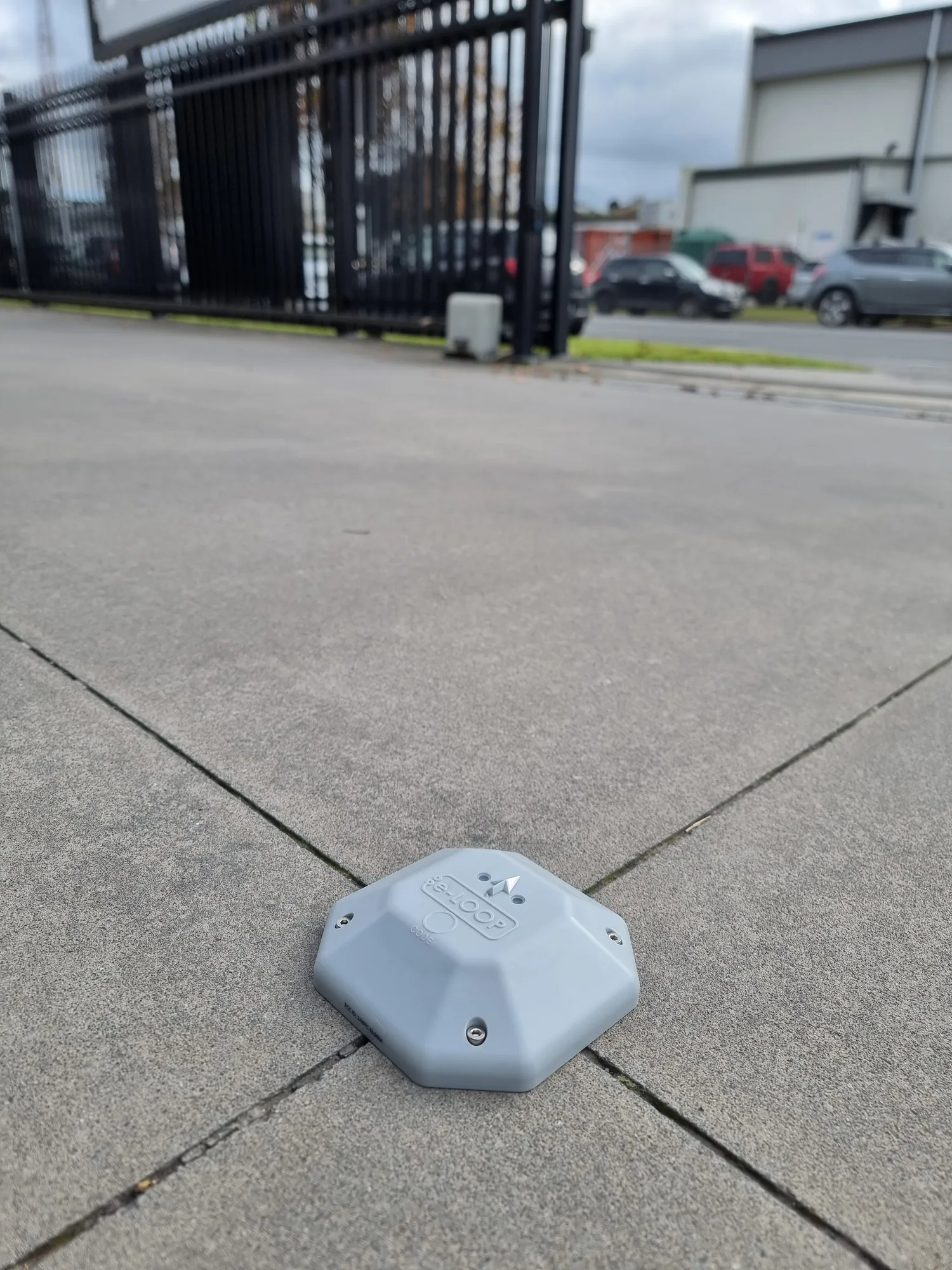

Step 2 – Fitting the e-LOOP Mini base plate to the driveway 1. Face the arrow on the base plate towards the gate. Using a 5mm concrete masonry drill, drill the two mounting holes 55mm deep, then use the 5mm concrete screws supplied to fix to the driveway.

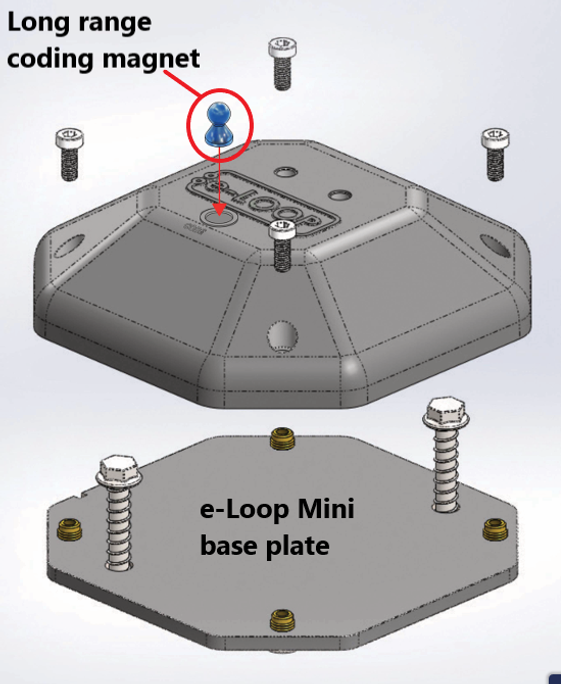

Step 3 – Fitting the e-LOOP Mini to base plate (Refer to diagram on the right) EL00M 1. Now fit the e-loop Mini to the base plate using the 4 hex screws supplied, making sure the arrow also points towards the gate (this will ensure keyway is aligned). The e-Loop will become active after 3 minutes.

NOTE: Ensure hex screws are tight as this forms part of the water sealing process.

IMPORTANT: Never fit near high voltage cables, this can effect the e-Loop’s vehicle detection and radio range capabilities.
